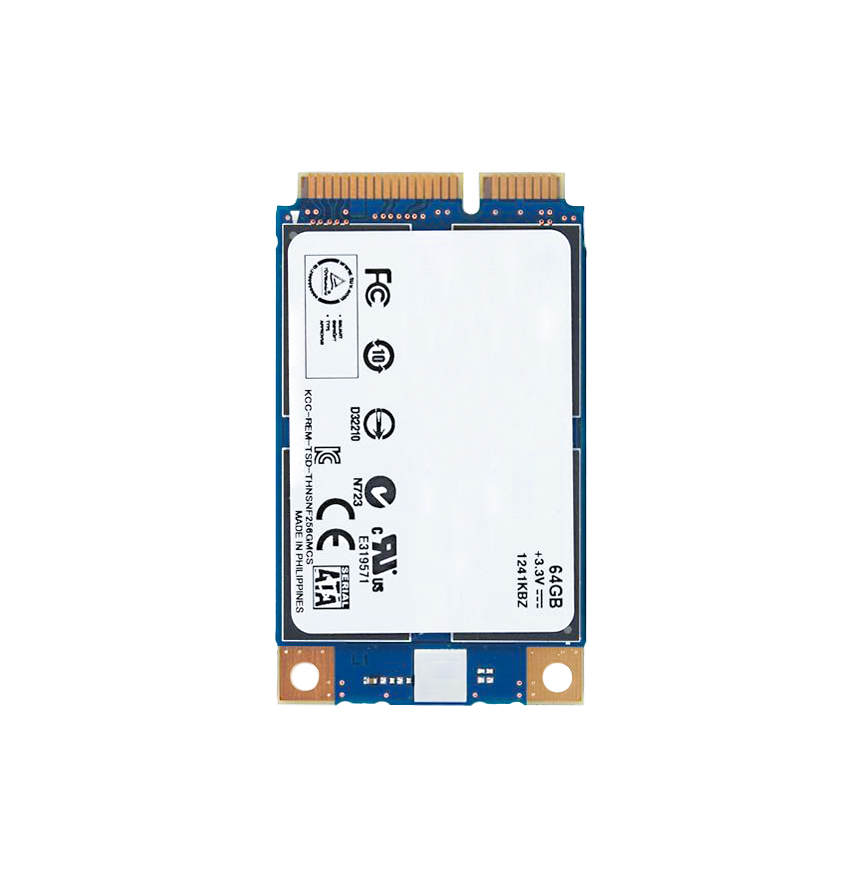

Type FD100M Series
Interface m-SATA
Storage Medium TLC
Weight <20g
Capacity 64GB~2TB
Specifications 50.8*29.85*4.85mm
Voltage 3.3V±5%
Power 3.5W MAX
Maximum Read Speed Up to 530MB/s
Maximum Write Speed Up to 500MB/s
Operating Temperature 0～+70℃
Product Overview FD100M supports SATAIII (6Gbps) high-speed transmission and is downward compatible with SATA ⅱ / ⅰ; Supports 64GB to 2TB capacity specifications. 3D NAND Flash with the latest manufacturing process, f
Detail

· Small volume, large capacity

· It conforms to gJB150.16A-2009 vibration measurement standard

· Conform to GJB1032-1990 environmental stress test standard for electronic products

· Supports Trim and NCQ

· Supports dynamic and static garbage collection

· LDPC intelligent error correction /S.M.A.R.T instruction /SLC virtual cache algorithm is supported
